Shipbuilding T-Profile Assembly and Spot Welding Integrated Machine | Core Equipment for Zhouxiang Shipbuilding T-Profile Production Lines

T-Bar Assembly and Spot Welding Machine

In the shipbuilding industry, T-profiles are critical structural components; their processing quality and production efficiency directly impact the overall vessel construction schedule. With over thirty years of expertise in welding and cutting equipment, Zhouxiang has developed three major product systems—T-bar production lines, flat block production lines, and intelligent sub-assembly lines—centered on core shipbuilding processes to provide comprehensive construction solutions. Among these, the integrated T-Bar Assembly and Spot Welding Machine  serves as a key piece of equipment within the T-bar production line, effectively addressing industry pain points associated with traditional manual assembly, such as positioning difficulties, inconsistent precision, and high labor costs.

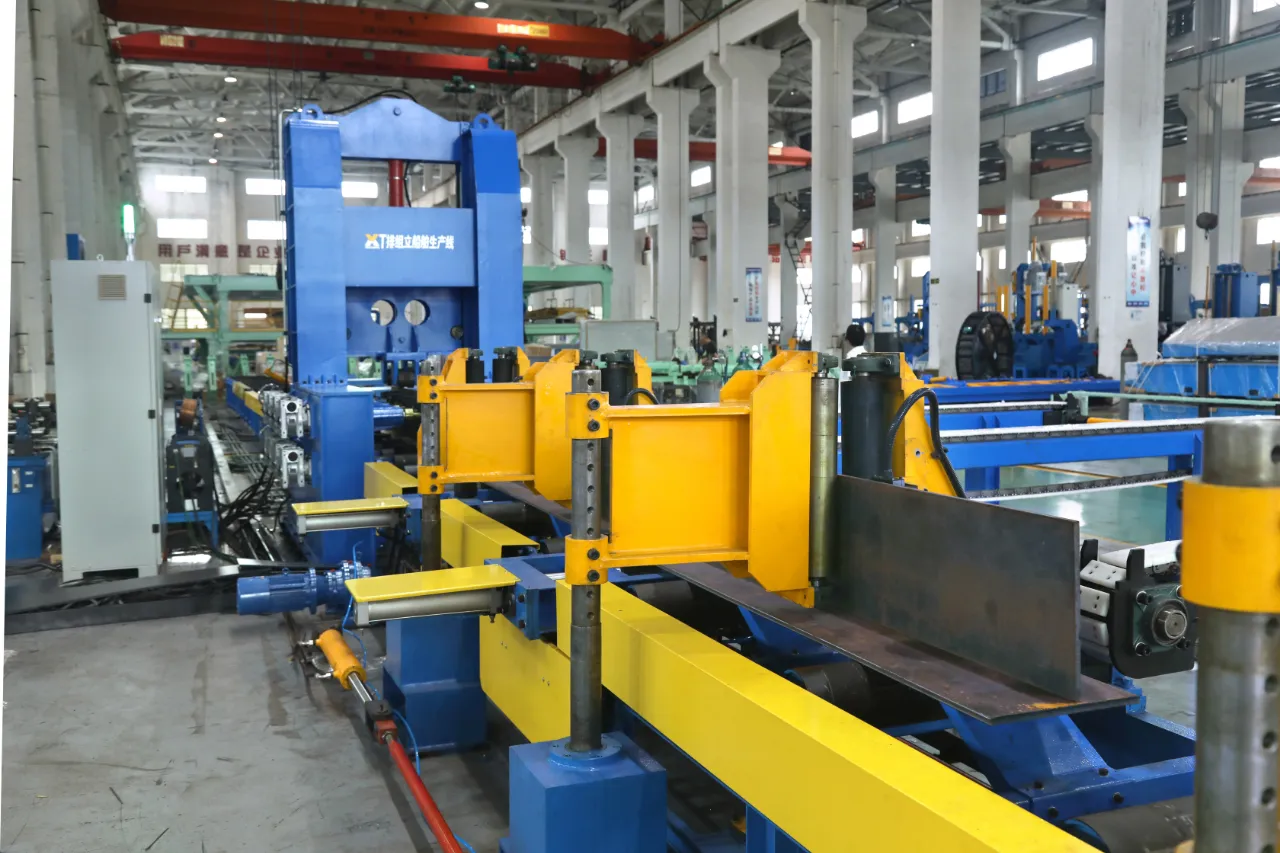

The Shipbuilding T-Bar Assembly and Tack Welding Integrated Machine integrates both assembly and tack welding functions into a single unit, combining previously separated processes into one streamlined operation. This effectively reduces errors caused by workpiece transfer and repeated positioning, while improving overall fabrication accuracy.The machine is capable of assembling and tack welding both centered-web and offset-web T-bars, meeting the requirements of mass production for ship hull structural components and providing a solid foundation for subsequent welding and assembly processes.The panel input roller conveyor and alignment system enable panel conveying and automatic centering. The web plate loading and turning device completes web plate storage, 90° rotation, and pre-assembly of T-bar components.After precise positioning, welding parameters are centrally managed by a digital control system. Welding current, travel speed, and welding angle no longer require repeated manual adjustment, significantly improving weld consistency and eliminating common issues associated with manual tack welding, such as uneven tack points and quality fluctuations.

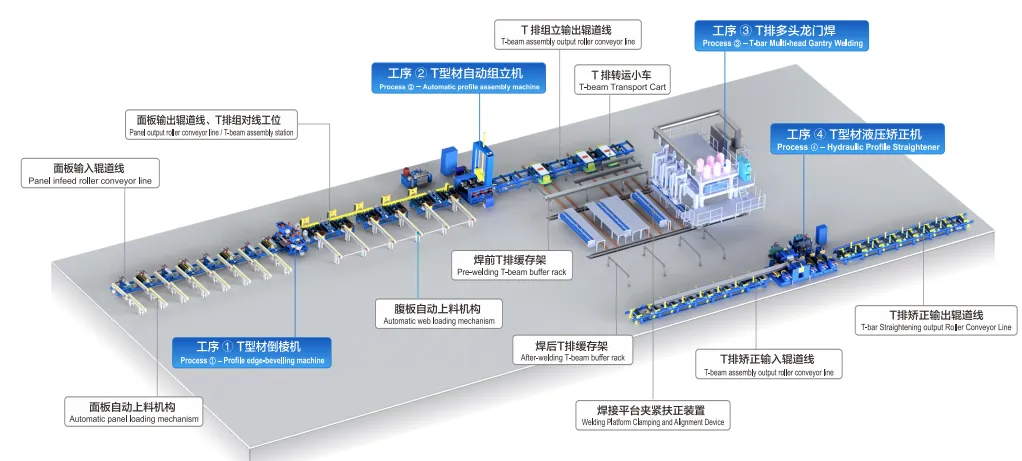

This integrated machine can be seamlessly integrated into Zhoxiang’s complete T-Bar production line or deployed independently in a modular configuration according to the workshop layout. Combined with Zhoxiang’s flat panel block production line and intelligent sub-assembly production line, it provides shipyards with intelligent welding solutions that help reduce costs, improve production efficiency, and accelerate the intelligent transformation and upgrading of shipyard production lines.
