T-Bar Straightening Machine
The T-bar Straightening Machine is an industrial device specifically designed to eliminate deformations in T-beams during processing in fields such as bridge and shipbuilding. It is an indispensable key equipment for ensuring the manufacturing precision and product quality of T-beams. It uses hydraulic or mechanical pressure rollers to accurately adjust the upward arch, downward bend, side bend, and warping of the profiles. The production line consists of an input roller line, T-beam straightening machine, output roller line, hydraulic system, and electrical control system. It is widely used in ship assembly lines.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Descriptions
Parameter
|
Technical Parameters
|
|
| Web height(H) | 200~1200mm |
| Webthickness(T1) |
8~25mm
|
| Panel width(B) | 90~400mm |
| Panel thickness(T2) | 10~30mm |
| Profile length |
3000~15000mm
|

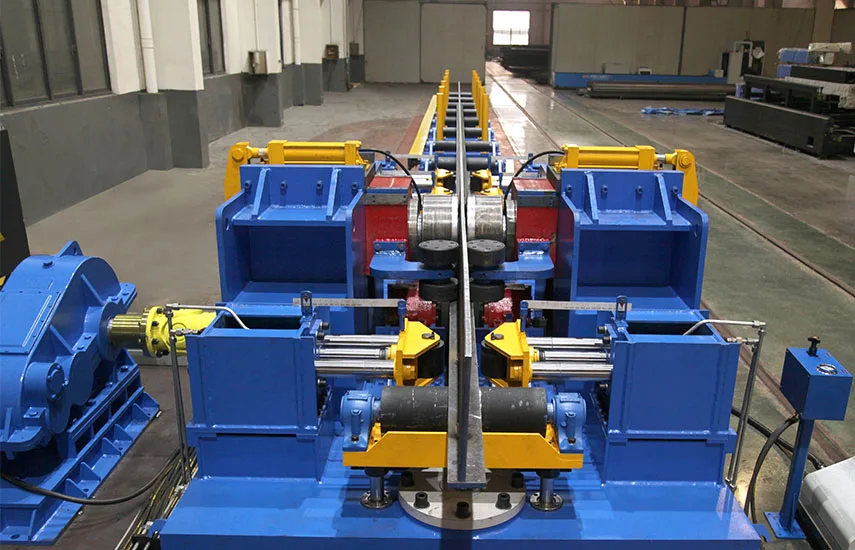

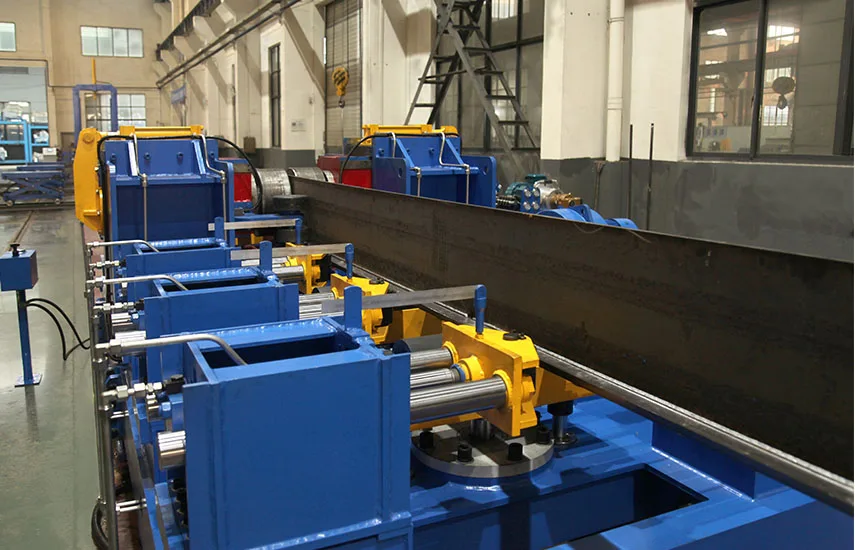

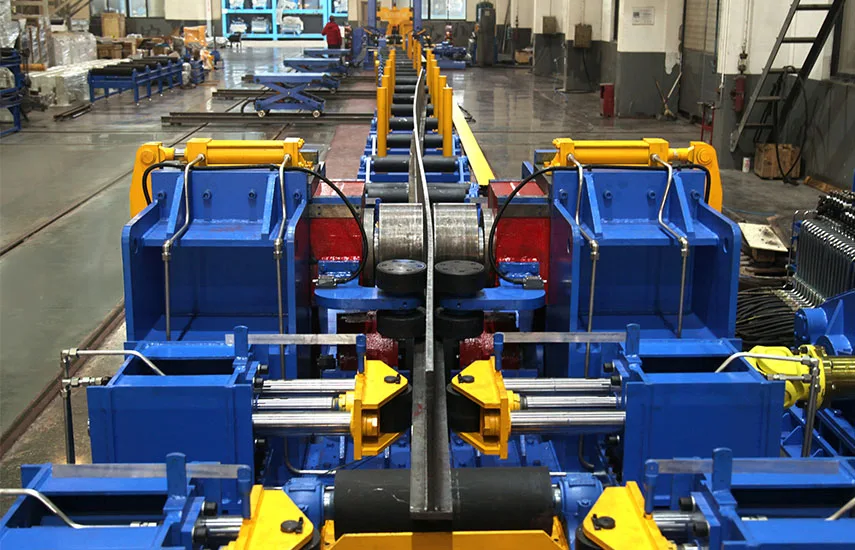

Product Display
The T-beam Straightening Machine is an industrial device specifically designed to eliminate deformations in Tbeams during processing in fields such as bridge and shipbuilding. It is an indispensable key equipment for ensuring the manufacturing precision and product quality of T-beams. It uses hydraulic or mechanical pressure rollers to accurately adjust the upward arch, downward bend, side bend, and warping of the profiles. The production line consists of an input roller line, T-beam straightening machine, output roller line, hydraulic system, and electrical control system. It is widely used in ship assembly lines.
Product Advantages
1. High degree of automation:
Automatic production reduces reliance on manual labor, lowers rework and rejection rates, and reduces overall costs.
2. High straightening accuracy:
Can correct complex deformations such as longitudinal bending, side bending, and twisting of T-beams at the same time, with a straightening accuracy of±0.5mm/m.
3. Significantly improves production efficiency:
·High-speed straightening: Greatly reduces the straightening time for a single T-beam, increasing efficiency by 80% compared to manual straightening.
·Batch processing capability: Supports continuous feeding, suitable for large-volume production needs.
4. Reliable and stable structure.
5. Compact footprint, easy installation, and simple operation.
Application
Why Choose Us
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries. Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
We actively participate in and hold exhibitions, and reach friendly cooperation with foreign friends. Our cooperation is not only our progress but also the world's progress!
Our Service
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
2.Q: What are the payment terms?
A: L/C; T/T.
3.Q: How long is the delivery time?
A: 30 Days.
4.Q:How long is the warranty period?
A: 1 Years.
